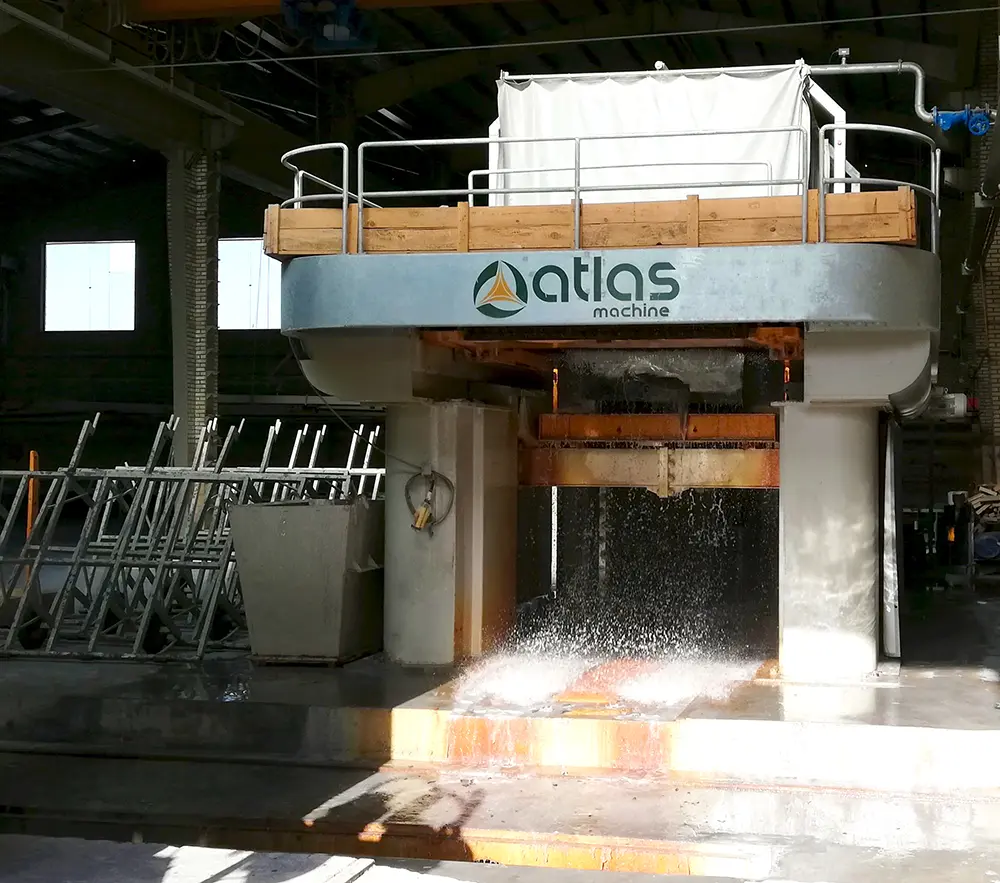

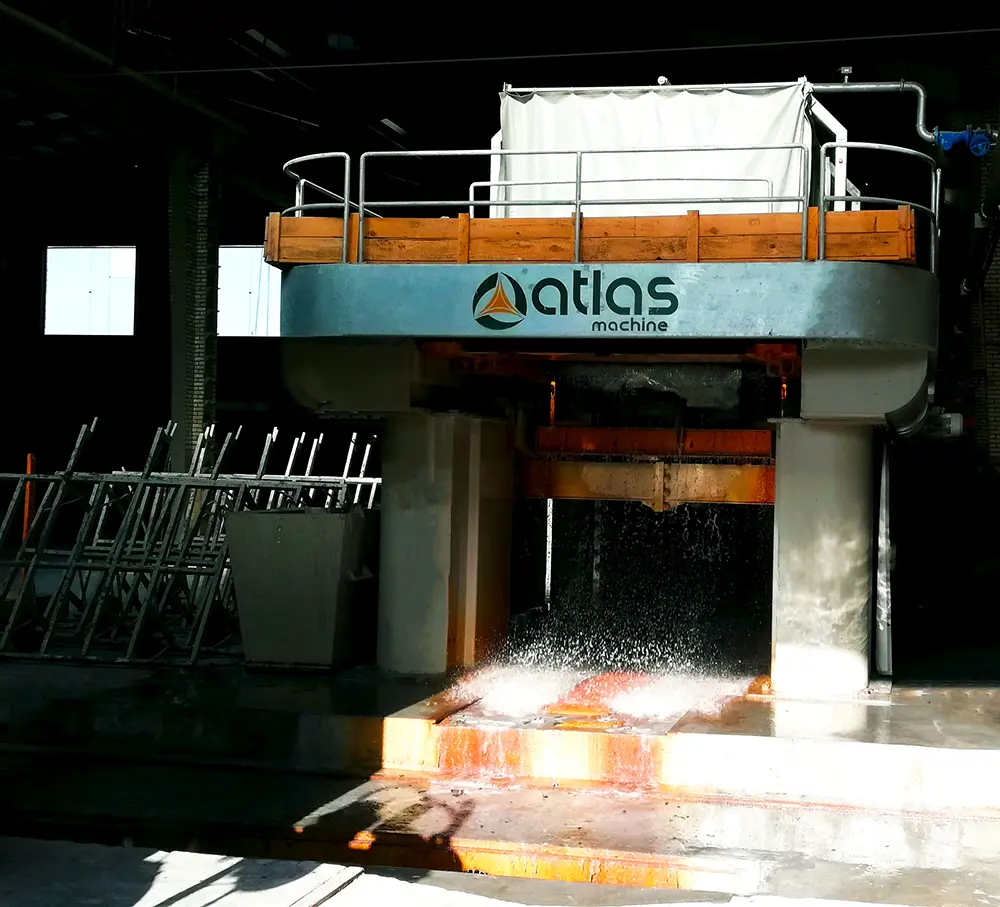

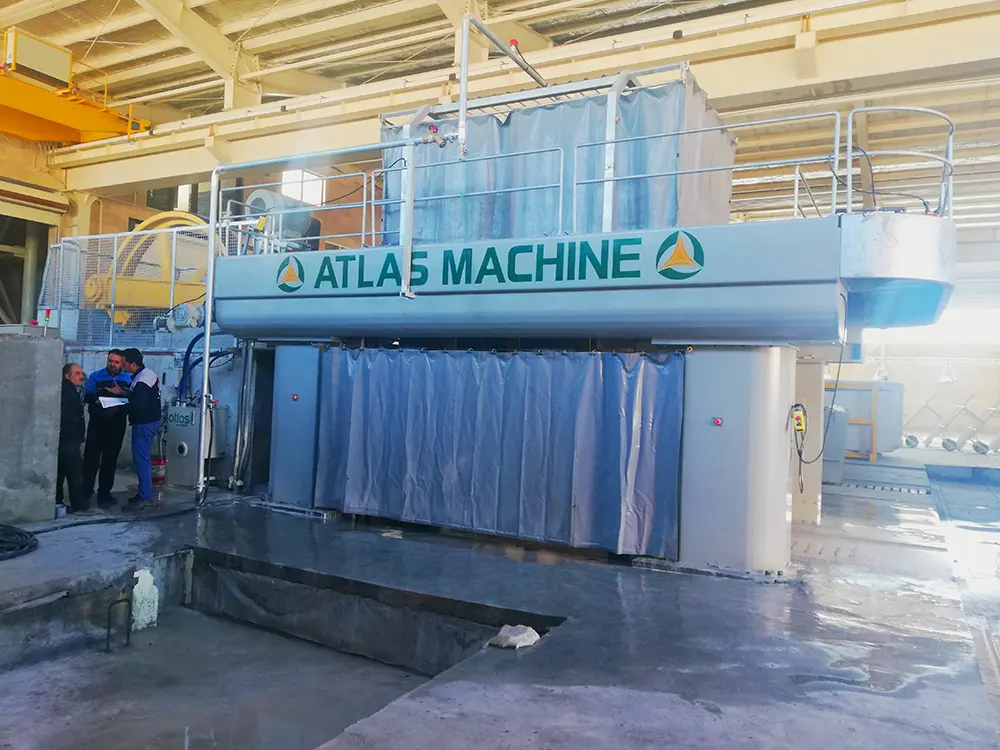

The ATLAS gang saw has been designed for cutting Marble. This machine has excellent performance in cutting speed and quality due to the movement of the frame supporting the blades on four linear guides with hydrostatic lubrication, the bushing system and the shaft.

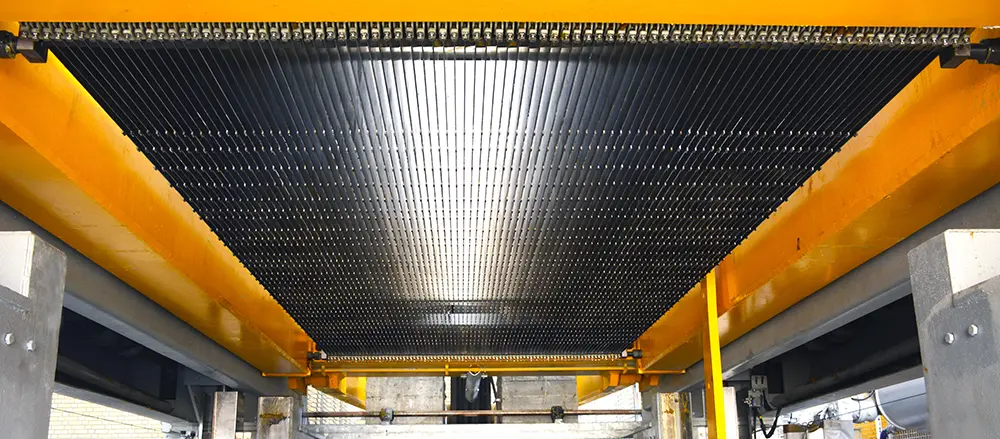

The characteristic feature of this type of gang saw is the frame’s movement of the retaining blades onto the hydrostatic linear guides, which has the following advantages:
- Create the lowest vibration at high speeds than the same device
- Low energy due to low frictional force on hydrostatic guides
- Inhibition of various forces caused by cutting the stone and creating a uniform surface when cutting slabs
- The same thickness at the beginning and end of the cutting
Design features and characteristics of the device:

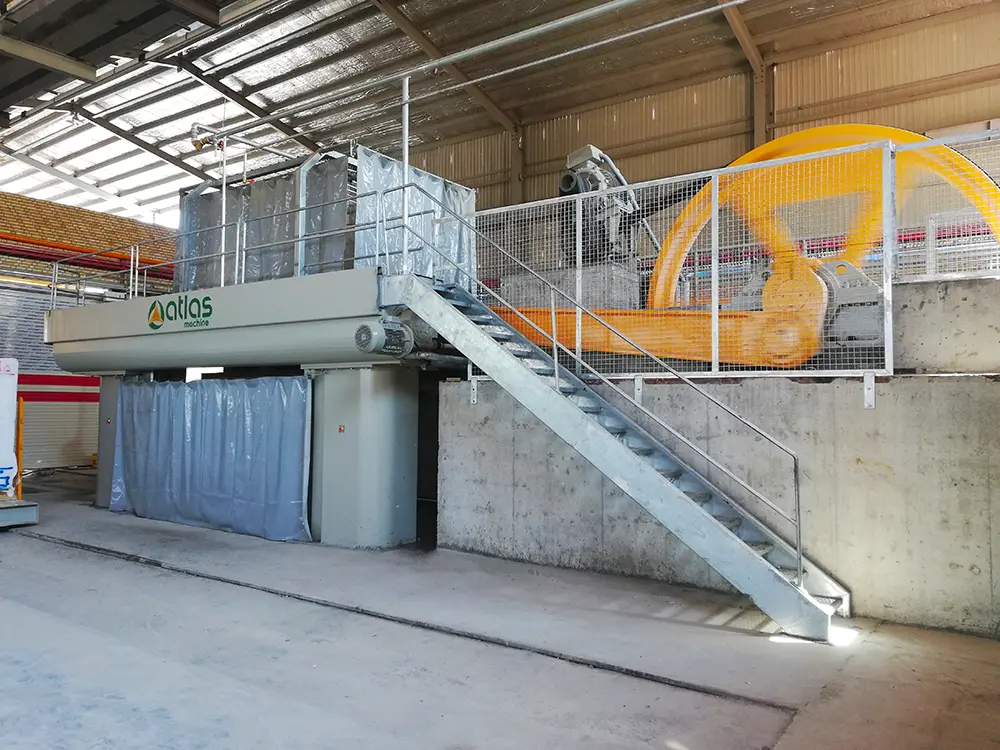

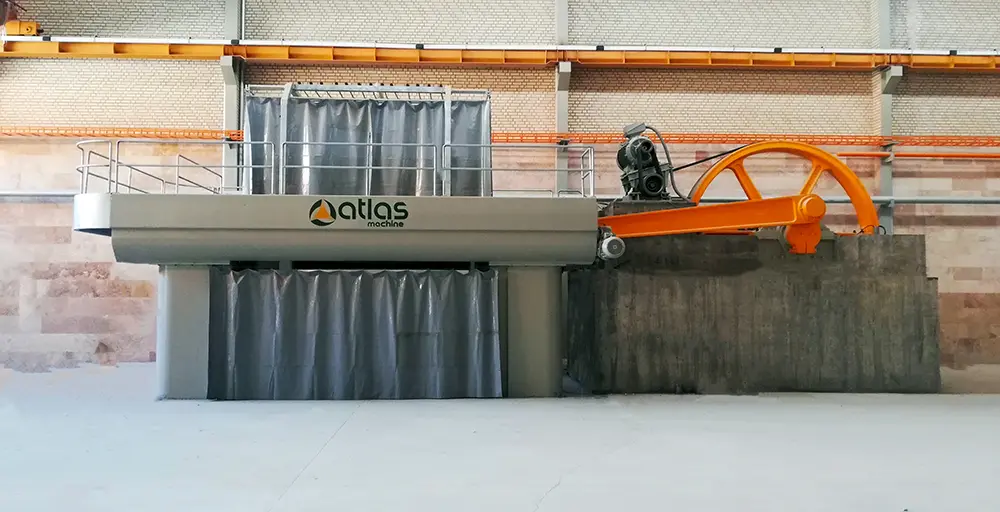

- Flywheel with a diameter of 3.5 m and a weight of 8500 kg to create uniform motion and provide the necessary energy for cutting
- Calculating and designing the balance of flywheel for having the highest dynamic balance during rotation
- Shutton made of casting steel, resistant to impact and machined with the highest accuracy
- The main shaft of the device is made of forged steel with high resistance to dynamic loads
- Perform ultrasonic testing on the main shaft to ensure its surface quality and prevent the growth of fine cracks after turning
- Accurate calculation, analysis and engineering selection of all parts of the machine in order to have enough strength and long life
- The highest precision in machining parts and structures of the device for its high performance and long service life
- Purchase of standard parts including bearings, belts, bearings and …from reputable European brands.
- The ability to enter the stone block from the front and side of the device
- Automatic lubrication of the machine’s main screws and fixed and pressure sliders
Technical Data
